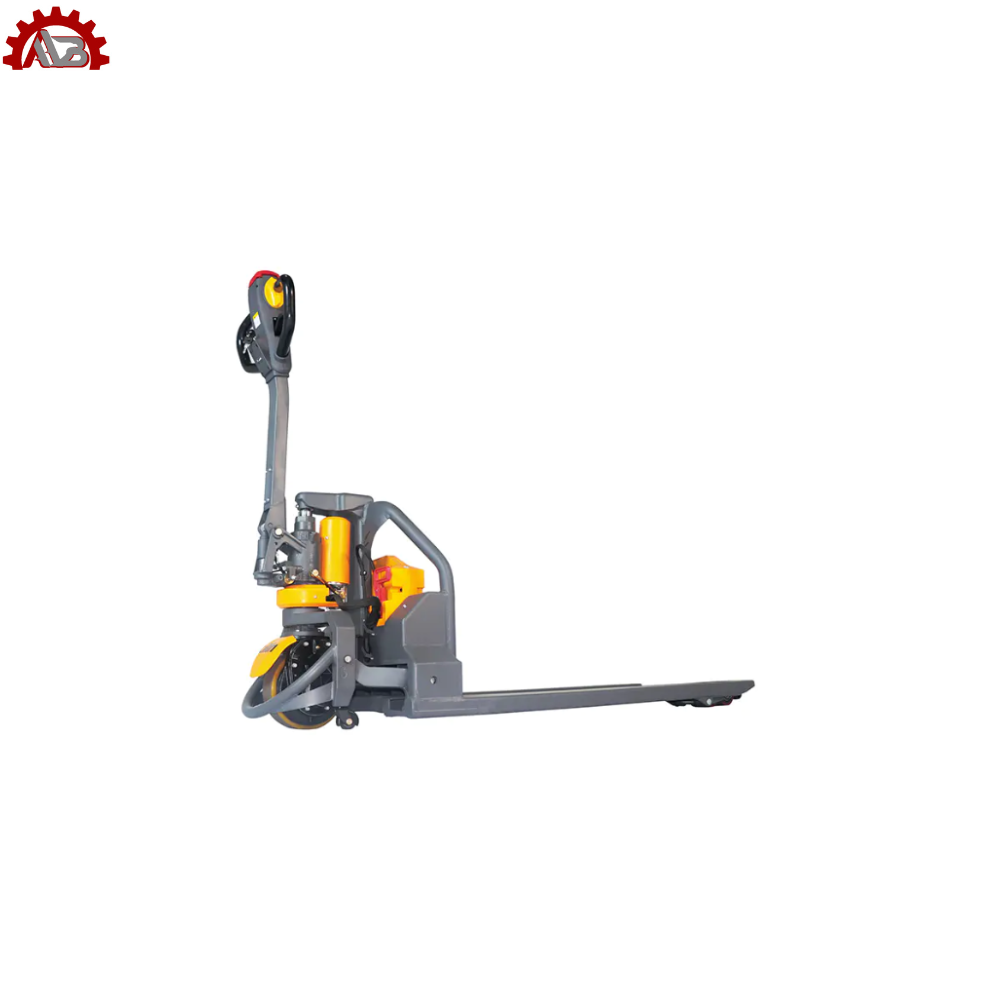

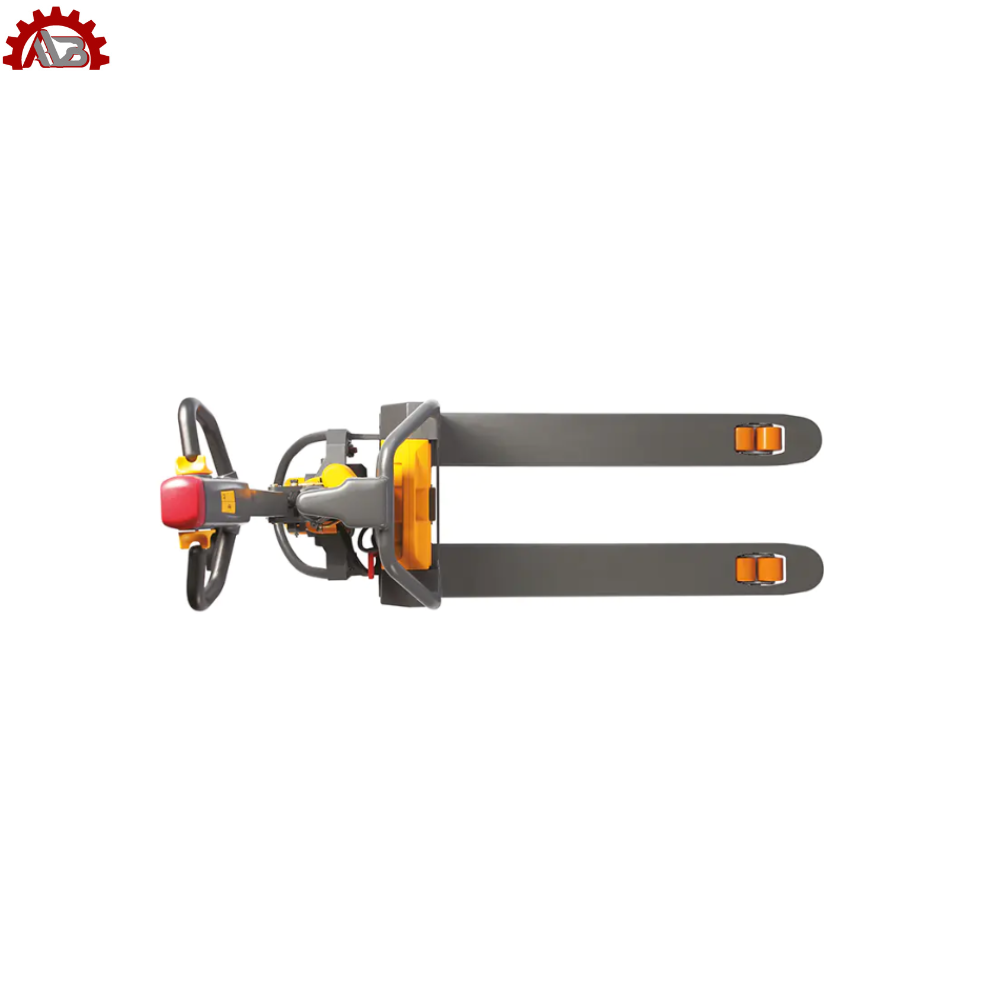

CBD15W-LIX Powered Pallet Truck

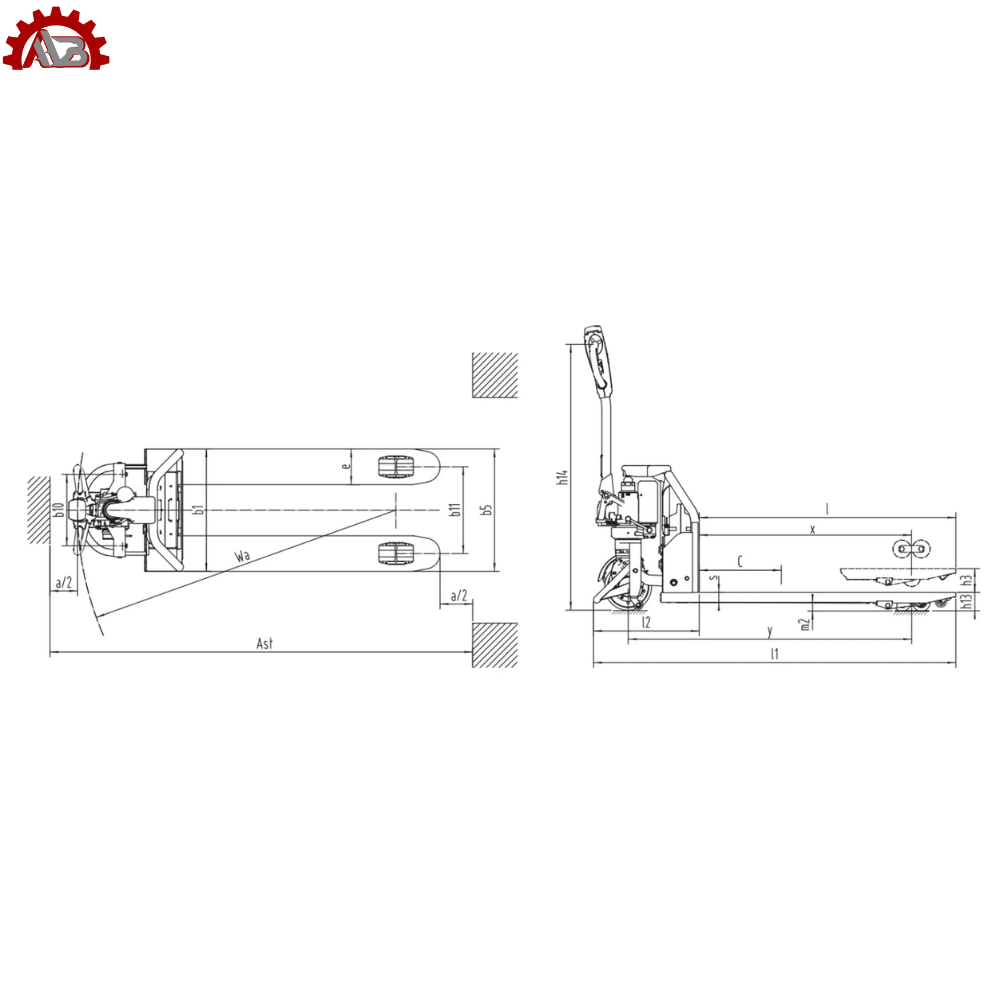

⚙️ Dimensions & Build

• Wheelbase: 1340 mm

• Overall Length: 1693 mm

• Fork Size (L×W): 1150 mm × 550 mm

• Height (Drawbar Max): 1200 mm

• Lowered Fork Height: 80 mm

• Lift Height: 110 mm

• Ground Clearance: 35 mm

• Turning Radius: 1494 mm

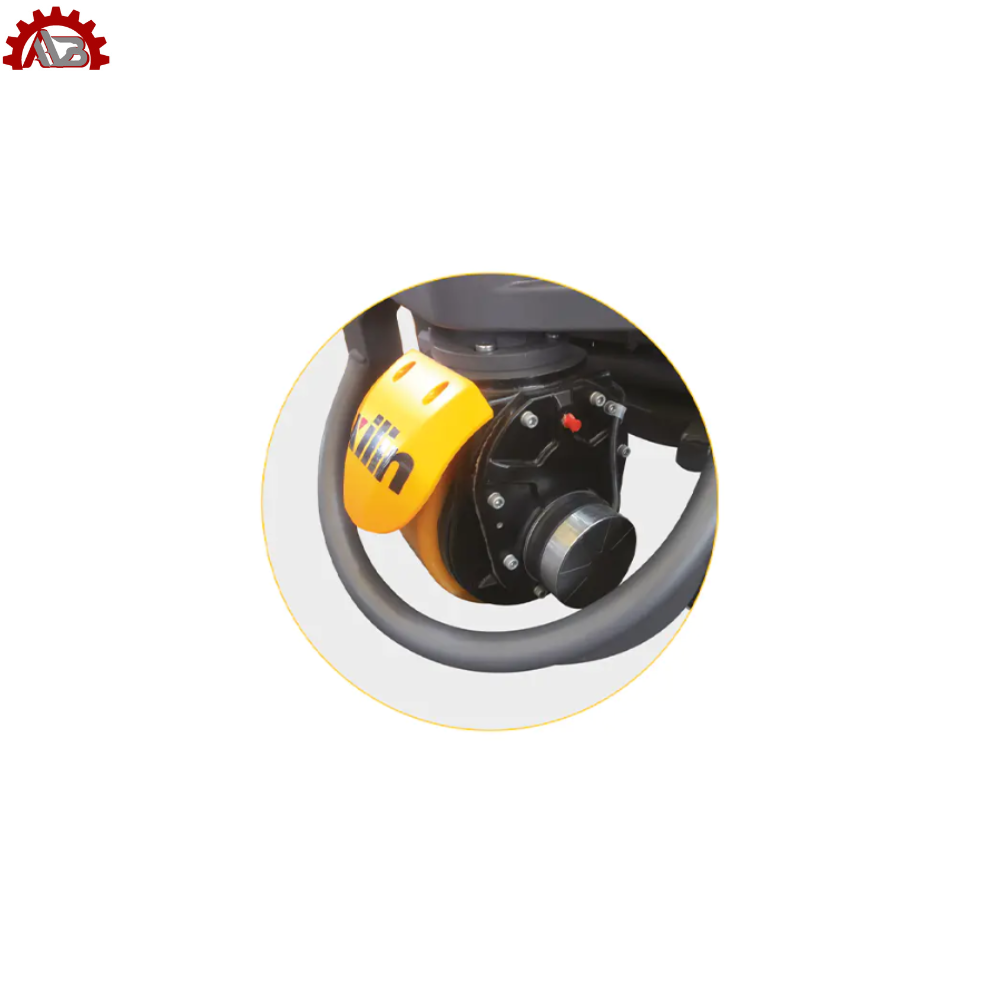

🛞 Wheels & Tyres

• Tyres: Polyurethane

• Front Tyre Size: Φ210×70 mm

• Rear Tyre Size: Φ80×93 mm

• Additional Wheels: Φ44×17 mm

• Wheel Configuration: 1x+2/2(4)

⚡ Performance

• Travel Speed (Laden/Unladen): 5 km/h

• Lift Speed (Laden/Unladen): 0.03 / 0.035 m/s

• Max Gradeability (Laden/Unladen): 5% / 20%

• Brake Type: Electromagnetic

🔋 Power & Battery

• Drive Motor Power: 0.65 kW

• Lift Motor Power: 0.8 kW

• Battery: 48V / 20 kWh

• Battery Weight: 9.7 kg

📢 Noise Level

• Sound Pressure at Operator’s Position: 70 dB(A)
