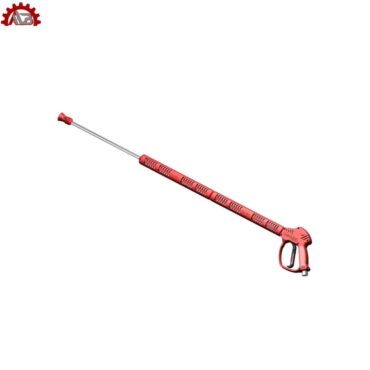

SPRAY GUN WITH LANCE

Description:

• Spray gun with brass forged body. The mechanism in stainless steel grants elevated performance and long life span. The ergonomic design reduces the strain during use and protects the user’s hand. The lever is fitted with a safety latch to prevent involuntary actions. Mechanical opening device with double connecting rods. The innovative trigger design, rotating on a fixed pin, allows for better mobility and steadiness.

Technical specification:

• INLET: 3/8 F
• OUTLET: 1/4 F
• GUN TYPE: RL 57 SS
• LENGTH: 1050 mm
• MATERIAL: Stainless steel 303
• RATED PRESSURE: 500 bar – 7250 psi
• PERMISSIBLE PRESSURE: 560 bar – 8120 psi
• RATED FLOW RATE:  28 l/min – 7.5 USGpm
• RATED TEMPERATURE: 160 °C – 320 °F
• WEIGHT: 1720 g
